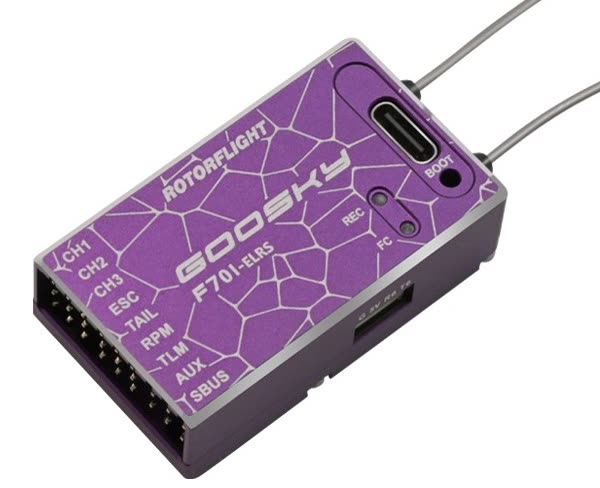

GooSky F701-ELRS

A Rotorflight flight controller with a built-in ExpressLRS receiver.

Board	GOOSKY_F701
MCU	STM32F722RET6
Gyro	ICM-42688-P
Blackbox	256 MB flash
Barometer	SPL06
Servo outputs	CH1, CH2, CH3, TAIL
Motor / RPM	ESC; RPM (dedicated frequency input); motorised tail supported
Built-in receiver	ExpressLRS, on UART1
Other ports	TLM (UART5 RX -- ESC telemetry), AUX (UART4 TX), SBUS (UART2 RX)
Supply	5-16 V; port power 5 V, 1.5 A
Size, weight	46 × 26 × 14.5 mm, 22 g
